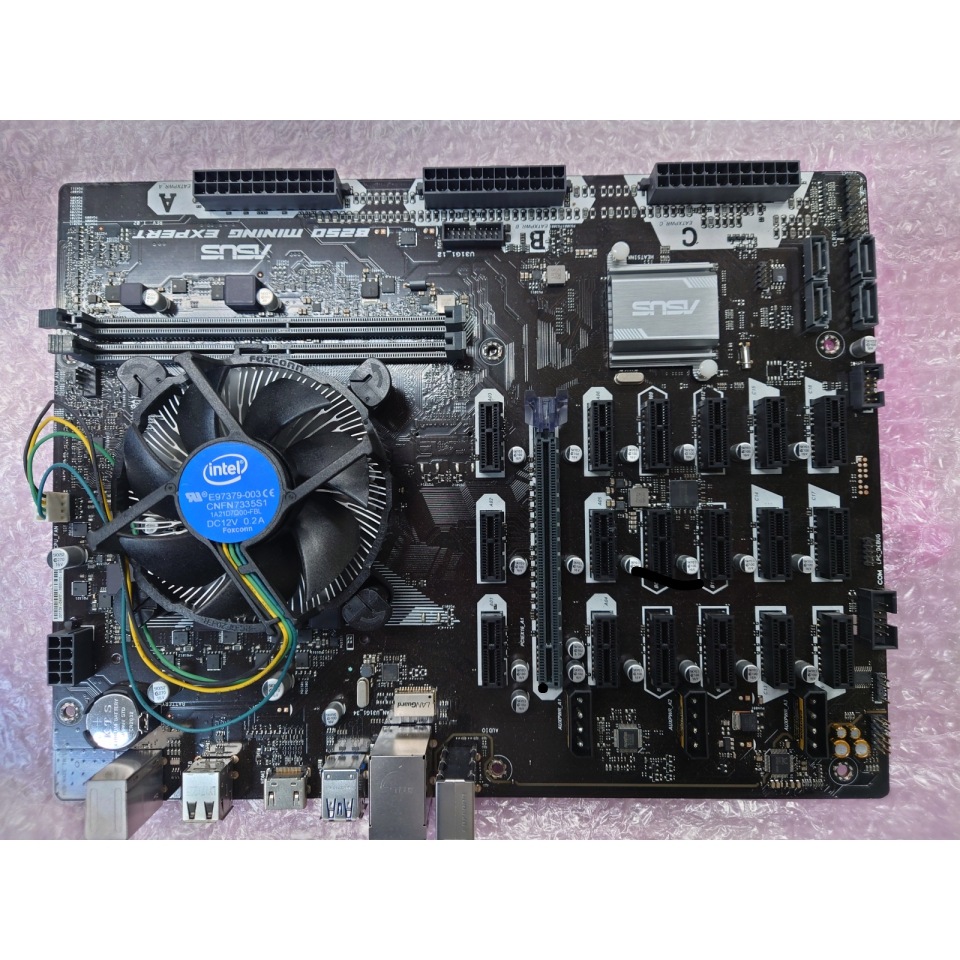

【中古】ASUS B250 MINING EXPERT Celeron G3900付き
￥3,980（税込）
Intel B250｣搭載のIntel製CPU向けATXマザーボード
マルチGPUマイニング用としては世界初の19スロットを搭載したマザーボード

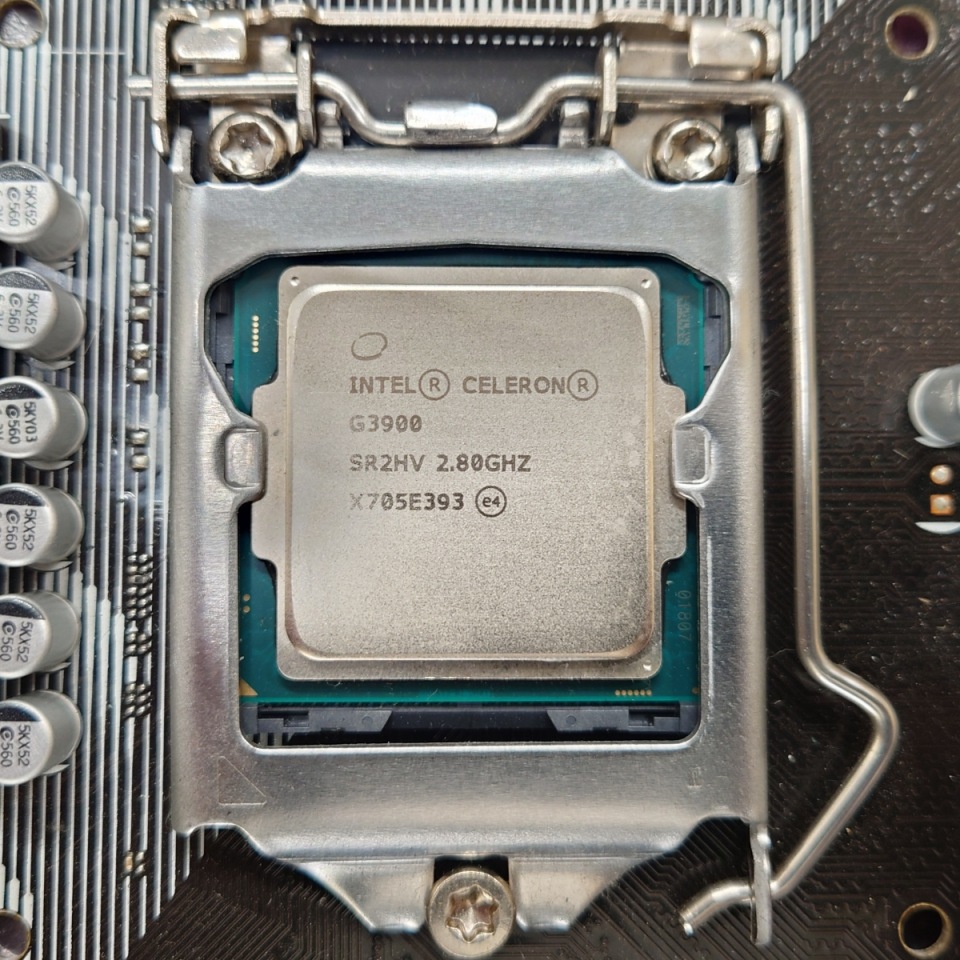

Intel Celeron G3900 2.8GHzプロセッサー付き
数量
【中古】ASUS B250 MINING EXPERT Celeron G3900付き
ITEM DETAIL
| 対応CPU |
Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 |
|---|---|
| 搭載チップセット | Intel B250 |
| メインメモリ |
2 x DIMM, Max. 32GB, DDR4- 2400/2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) * Due to Intel chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel processors will run at the maximum transfer rate of DDR4 2133MHz. |
| グラフィックス機能 |
Integrated Graphics Processor- Intel HD Graphics support VGA output support : HDMI port - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz Maximum shared memory of 1024 MB |
| 拡張スロット |
1 x PCIe x16 (x16 mode) 18 x PCIe x1 |
| ストレージ機能 | 4 x SATA 6Gb/s port(s), |
| LAN機能 | Intel I219V, 1000BASE-T/100BASE-TX/10BASE-T×1 |
| オーディオ機能 | Realtek ALC887 8-Channel High Definition Audio CODEC |
| USB機能 |
Intel B250 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 2 at mid-board) Intel B250 Chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) |
| 独自機能 |
ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design |
| 背面インターフェース |
1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 3 x Audio jack(s) |
| 基板上インターフェース |
1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 3 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 3 x 4-pin AUXPWR Header |
| 主な付属品 |
User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x Supporting DVD |
| BIOS機能 | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS3.0, ACPI 6.0, ASUS EZ Flash 3, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information |
| 管理機能 | WfM 2.0, DMI 3.0, WOL by PME, PXE |
| OS |
Windows 10 64-bit Windows 7 64-bit *1 |
| フォームファクター（サイズW×D） |
ATX Form Factor 12 inch x 9.1 inch ( 30.5 cm x 23.1 cm ) |
| その他 | 1.Windows 7 64-bit is only supported when using 6th Generation Intel Processors |
